THERMAL THERMALLY BROKEN SERIES

The latest commercial energy efficient window and door series from Trend.

Sustainable living is no longer a concept of the future, with a growing number of builders, homeowners and architects exploring sustainable and energy efficient construction solutions. Trend's latest thermally broken series of windows and doors provides an energy efficient solution to meet the increasing demands for thermal performance. ThermAL is designed to meet the demands of architecturally designed homes, multi-residential projects and commercial buildings. And has been rigorously tested to suit a host of different performance requirements.
What are thermally broken windows and doors?

Thermal Windows and Doors

What are thermally broken windows and doors?

Thermally broken is a type of frame design engineered to enhance the energy efficiency and thermal insulation of buildings. A window or door with a thermal break is constructed with two or more sections of the frame that are separated by a thermally insulating material. This insulating material is typically made of polyurethane or a similar substance with low thermal conductivity. It acts as a barrier, preventing the direct transfer of heat between the inner and outer parts of the frame.

ENERGY EFFICENT COMFORT

Thermal Windows and Doors

ENERGY EFFICENT COMFORT

Thermally broken technology together with high performance double glazing minimises the transfer of heat and cold to provide optimum performance.

  • Improved comfort of the building, reduced energy costs
  • Avoids condensation build-up on the interior surface of the frame
  • Thermally broken sub-framing available

Product

U-value | SHGC

Awning window

3.0 – 5.5 | 0.29 – 0.51

Sliding window

2.5 – 5.6 | 0.34 – 0.60

Stacking window

2.5 – 5.6 | 0.34 – 0.60

Fixed window

2.2 – 5.7 | 0.39 – 0.69

Sliding door

2.2 – 5.5 | 0.36 – 0.64

Stacking door

2.2 – 5.5 | 0.36 – 0.64

Hinged door

2.3 – 5.0 | 0.29 – 0.51

FINISHES

Ultra Black
Monument
Surfmist
Pearl White
Glazing Options

Thermal Windows and Doors

Glazing Options

The range features a glazing pocket that accommodates for a max glass thickness of 26mm, allowing for a range of glazing options to achieve exceptional acoustic performance and energy efficiency.

Available in glass options:

  • Clear
  • Low E
  • White
  • Grey



Awning Window

Thermal Windows and Doors

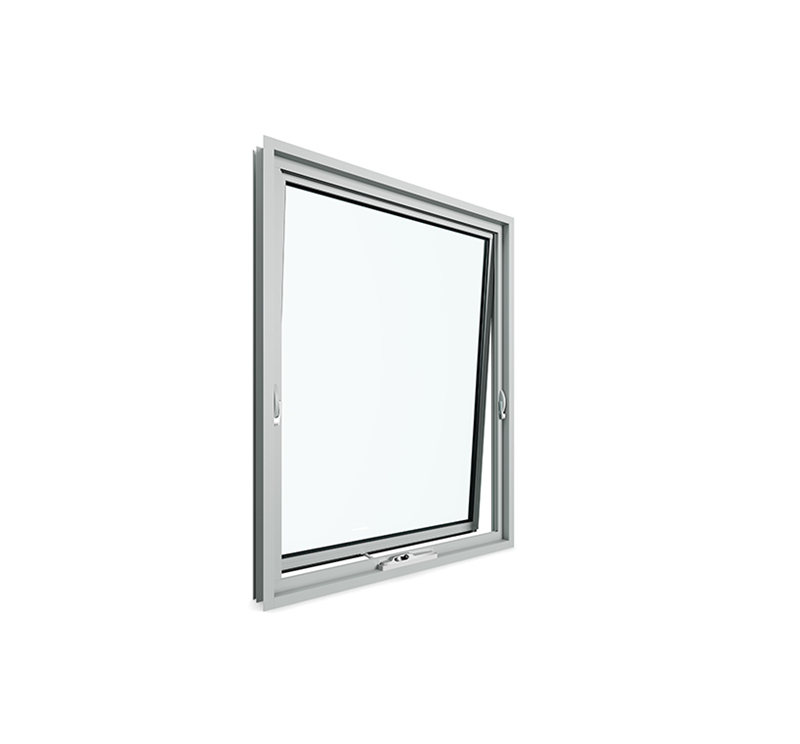

Awning Window

The ThermAL thermally broken awning window is designed with performance in mind. Its large windows, available up to 2400mm wide, make it ideal for building facades, shopfronts and other architectural applications.

  • Full-height floor-to-ceiling sashes available.
  • Internally glazed – suitable for applications where external access is restricted.
  • Stainless steel chain winder hardware sits within the frame and won’t
    interfere with the addition of blinds or shutters.
  • A multi-point sash fastener is provided for larger openings to ensure
    a secure close and seal.
  • Features an integrated flyscreen channel that suits any standard flyscreen
    without the need for unsightly clip-on adaptors.
  • Double compression seals improve energy, weather, and acoustic performance.
  • Restricted opening options available.
Fixed Window

Thermal Windows and Doors

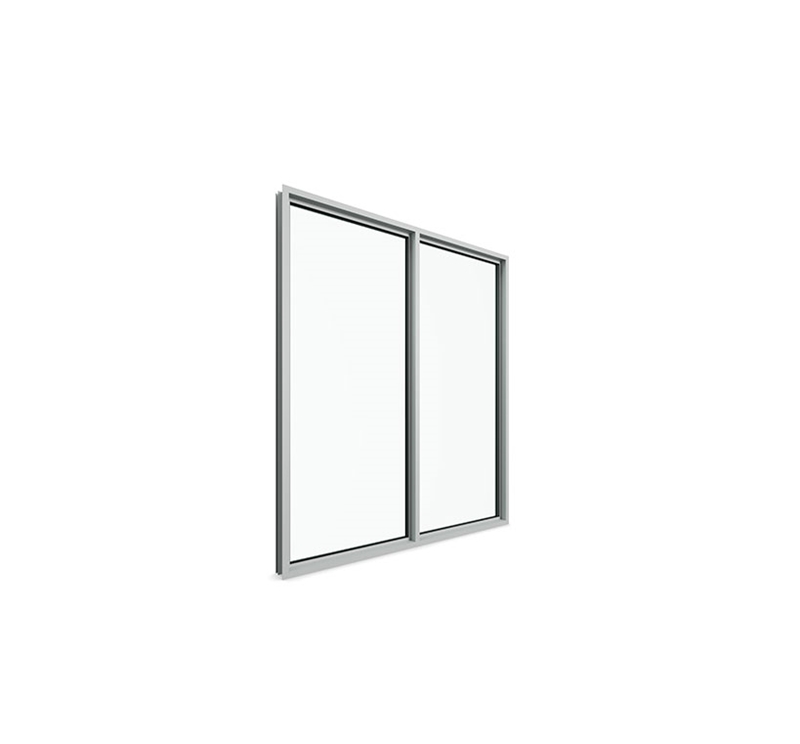

Fixed Window

The ThermAL thermally broken fixed window is ideal for use across building facades, shopfronts and other architectural applications. Its size allows for large expanses of glazing up to 8 square metres in a single lite.



  • Designed with straight cut frames to provide a uniform look across all windows and doors.
  • Internally glazed – suitable for applications where external access is restricted.
  • All products within the range have a consistent frame size. This creates
    a seamless look between products, and provides the opportunity for coupling of products.
  • Frames are modular in design – they can be clipped together on-site and used in window-wall applications.
  • For improved aesthetics the windows are centre glazed. This means when multiple products are coupled together the glass is inline.
  • ThermAL fixed windows are compatible with both Aneeta and Breezway inserts.
Sliding and Stacking Window

Thermal Windows and Doors

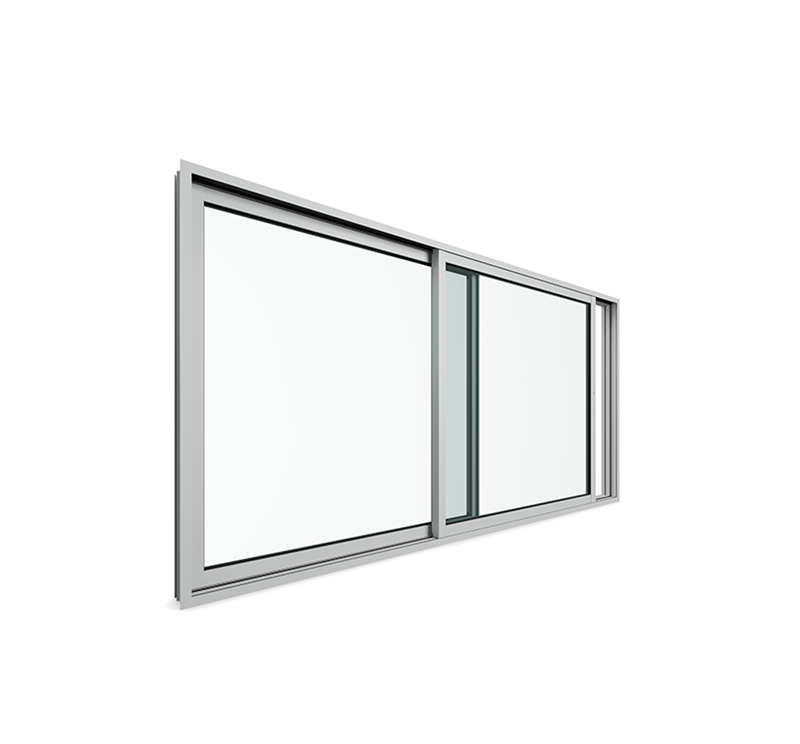

Sliding and Stacking Window

The ThermAL thermally broken sliding and stacking windows provide uncomplicated design flexibility and allow wider and taller openings compared to other window styles. This makes them a popular choice for contemporary architecture with a simple design aesthetic.



  • Common design features between sliding door and sliding window, when used side by side create a seamless look.
  • Features an integrated flyscreen channel that suits any standard flyscreen
    without the need for unsightly clip-on adaptors.
  • Mortice lock handle is flush mounted for a seamless look.
  • Double bogy rollers for smooth operation.
  • Rubber seals ensures low air infiltration rates and provide longevity to the sealing system.
  • Sliding screen optional - ideal for servery applications.
  • No internal projection of transom or sash sections to avoid interference with blinds or shutters.
Hinge Door

Thermal Windows and Doors

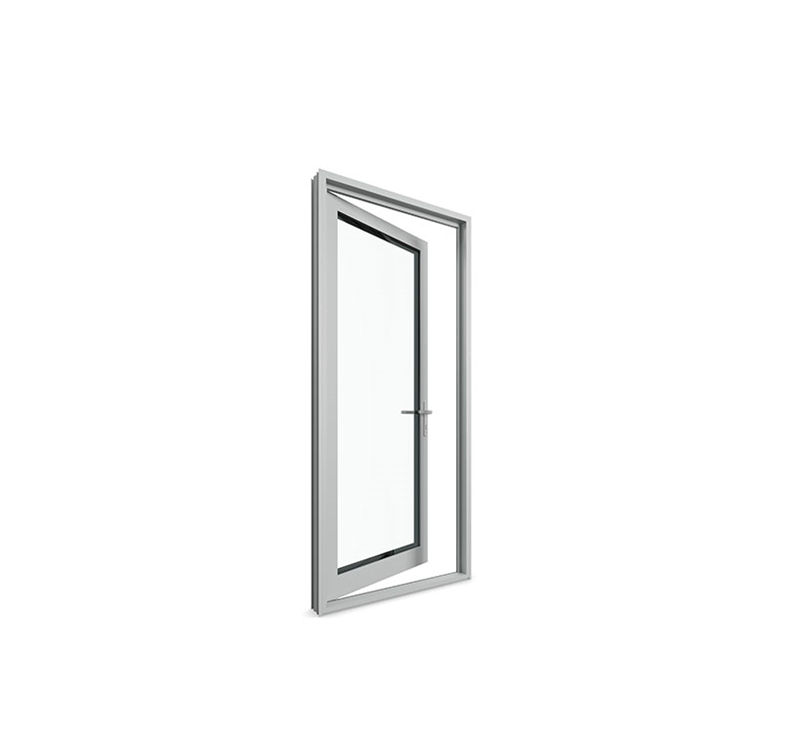

Hinge Door

The ThermAL thermally broken hinge doors are designed with functionality in mind, with fully adjustable hardware. Making it ideal for ease of installation and long-term serviceability of the product.



  • Features a multi point mortice lock – fully adjustable to adjust the compression on the seals and provides a more secure locking solution.
  • Concealed door closer - concealed within the frame.
  • Double compression seals improves energy, weather and acoustic performance.
  • Door can be re-handed without any machining or damage occurring to the frame on-site.
  • Commercial lock with electric strike as an option.
  • Available with in-swing and out-swing options.
  • Various sill options to suit a range of applications – sill, ramp sill, no sill (with automatic seal that drops down from panel when door is closed).
Sliding And Stacking Door

Thermal Windows and Doors

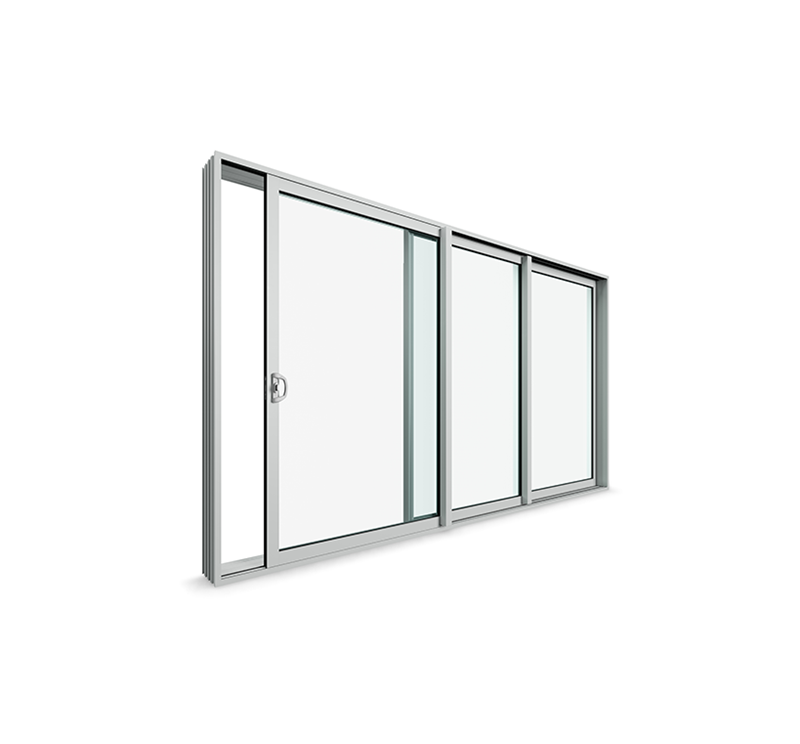

Sliding And Stacking Door

The ThermAL thermally broken sliding and stacking doors provide uncomplicated design flexibility and allow wider and taller openings compared to other door styles.



  • Frame flexibility - configurations are customisable to suit site requirements.
  • Mortice lock as standard.
  • Quad bogy rollers for smooth operation.
  • Wheelchair compliant.
  • Flat from inside to outside for seamless thresholds.
  • Drainage subsill can be integrated with Stormtech grates.
  • Built in screen tracks if required – no “add-ons” necessary.
  • Trims on unused tracks for seamless look.
THERMAL WINDOWS AND DOORS

Customer Information Pack

Download the ThermAL Customer Information pack for technical specifications, performance data and more.
