ThermaRes Awning Windows

ENJOY THE BEST OF BOTH WORLDS

You can have it all. Energy performance. Stunning style. ThermaRes awning windows offer the elevated energy efficiency of double glazing with the style, class and quality of a thermally broken aluminium frame. Live your dream, in comfort.

ThermaRes Awning Windows

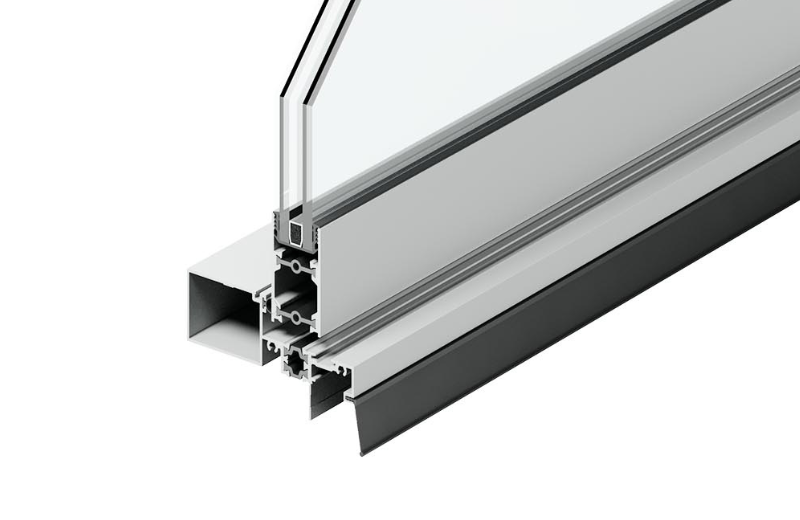

SLIM PROFILE FRAME

The ThermaRes awning window is a brilliantly functional design, hinged at the top to open outward from the bottom, allowing for ventilation in any weather. The slim profile frame ensures energy performance, reaching a U-value as low as 2.0, while maximising natural light and views.

ThermaRes Awning Window Spec Sheet

FINISHES

With Trend's extensive palette of colours you’re sure to find exactly the right hue to express your individual vision.

Monument

Surfmist

Pearl White

Ultra Black

HARDWARE

Finishing details can take any design to a whole new level and that’s especially true of door and window hardware.

Chain Winder - ThermaRes

Sash Fastener

GLASS OPTIONS

A range of glazing options are available to improve comfort, acoustics, security, and privacy.

Serenity

In busy, urban environments, noise is constant. There is an increasing need to reduce unwanted noise from road traffic, trains and aircraft to create a more comfortable living environment, promote a healthier sleep, reduce stress, and improve concentration. By choosing an appropriate glass for your specific location, you can significantly reduce the amount of ambient noise that penetrates your home.

Security

If safety and protection are priorities, we offer a wide range of performance glass options to meet your requirements. There are two types of Grade A safety glass available. Grade A safety glass is harder to break and offers greater security against accidental injury, attempted break-ins and severe weather conditions.

Privacy

The privacy range of glazing options allows for high level light transmittance, while obscuring the view from outside. Different levels of obscurity are available and the range can be toughened or laminated to provide a Grade A safety. Ideal for bathrooms, bedrooms, front entry doors or any area you want to block from prying eyes.

Comfort

Australia has some of the harshest sunlight in the world. Maintaining a comfortable indoor environment is difficult, when temperatures rise and fall during the day and between seasons. To improve your overall comfort and well being there are a range of glazing options which allow you to improve your home’s insulation, reducing both your carbon footprint and your energy consumption.

THERMARANGE

Trims and Finishes

Our range of finishes and trims are designed to complement various home styles and optimise the installation process. The durable and innovative design ensures a flawless finish every time.

Specifications

Sill options

N/A

Maximum frame

2700mm high

Maximum sash

2289mm high x 864mm wide
660mm high x 1775mm wide
1499mm high x 1134mm wide

Glazing

20mm

BAL rating

Deemed to satisfy BAL29

Seal type

PVC bulb seal

Screen options

Flyscreen and barrier screens

Double glazed Uw range

2.0 – 3.0

Double glazed SHGC range

0.18 – 0.55

Fenestration

Awning Window

Downloads

ThermaRes Awning Window Spec Sheet

Download

ThermaRes and ThermaArc Size Charts

Download
