ThermaRange Windows and Doors

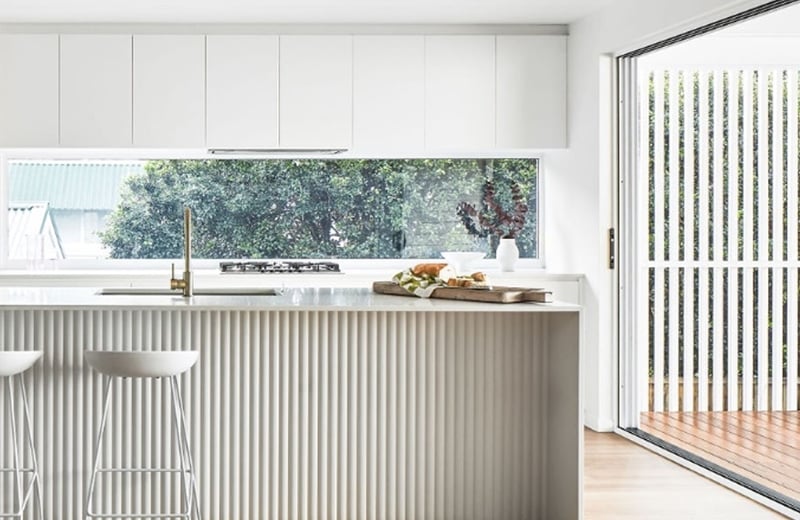

Enjoy The Best of Both Worlds
You can have it all. Energy performance. Stunning style. ThermaRange offers the elevated energy efficiency of double glazing with the style, class and quality of a thermally broken aluminium frame. Live your dream, in comfort.
MAKE ANYTHING POSSIBLE
Looking to create beautiful liveable spaces, individual to you? You can do it with ThermaRange. Custom sizes and a variety of configurations. Add a next-level array of glazing options, hardware and other accessories, and even the most unique vision becomes reality. A choice between our residential or architectural series will meet the needs of your project, no matter what it is.
THERMARANGE WINDOWS AND DOORS
THE FLEXIBILITY TO MAKE IT YOURS
Make your home a reflection of you. With the ThermaRange, there’s a finish for all looks inside and out. And because we know that no two homes are the same, ThermaRange products are designed to pair seamlessly with a wide range of building materials and styles.
FINISHES
Hardware
ThermaRes windows and doors
Introducing the ThermaRes Energy Efficient Window and Door Series.
ThermaRes is a thermally broken suite of products that feature a slim profile frame that maximises natural light and views. The energy effcient frame with double glazing as standard enhances your home’s liveability by improving comfort and the usability of a space.
ThermaRes Windows and Doors

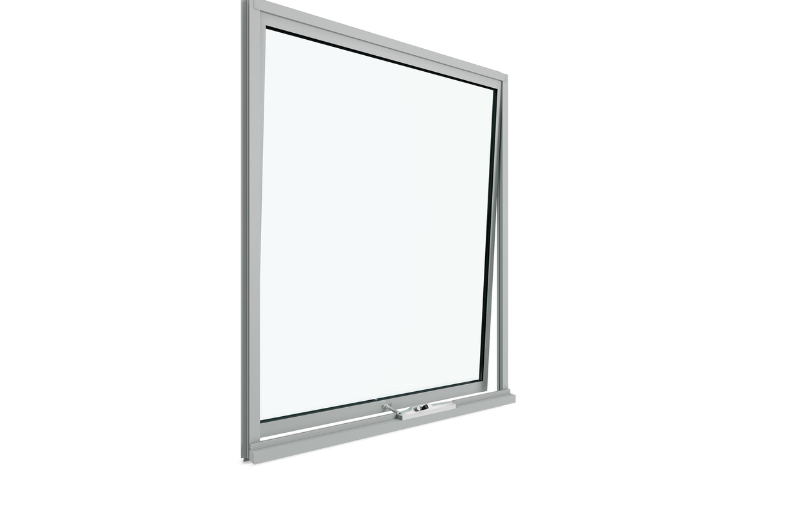

Awning Window
The ThermaRes awning window is a brilliantly functional design, hinged at the top to open outward from the bottom, allowing for ventilation in any weather.
- Up to 2700mm frame height.
- U value as low as 2.0.
- Acoustic ratings up to RW38.
- All windows keyed alike. Use one key for multiple windows.
- Chain winder features an integrated lock-and-handle in one. The stainless-steel chain offers durability and reliability.
- On larger windows, modern low-profile sash fasteners ensure a tight seal.
- Restricted opening option to prevent falls.
ThermaRes Windows and Doors

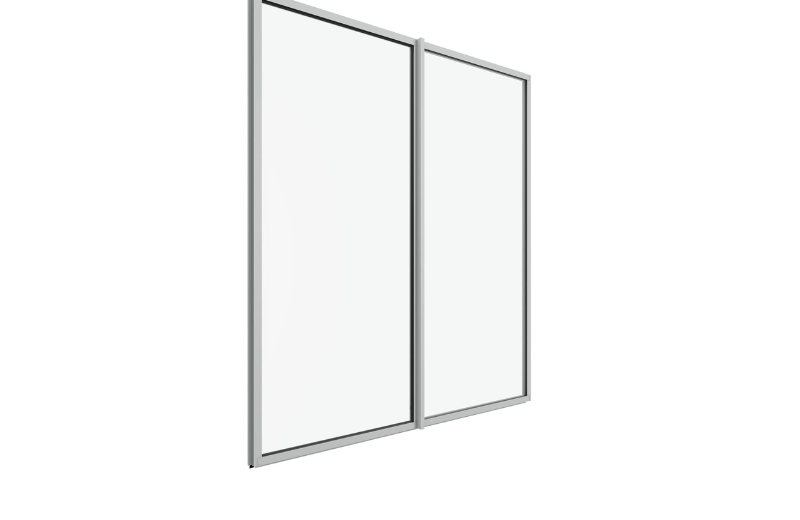

Fixed Window
The ThermaRes fixed windows are available in a range of configurations and couples seamlessly with other ThermaRes windows to make achieving any design vision easy.
-
Up to 3 sqm of glass in a single lite.
-
U value as low as 1.4.
-
Acoustic ratings up to RW38.
-
Slimline frame creates a minimalist style with larger glass viewing area for maximum natural light and views.
- Externally glazed to make it easier to glaze larger panels on-site and reduce manual handling.
ThermaRes Windows and Doors

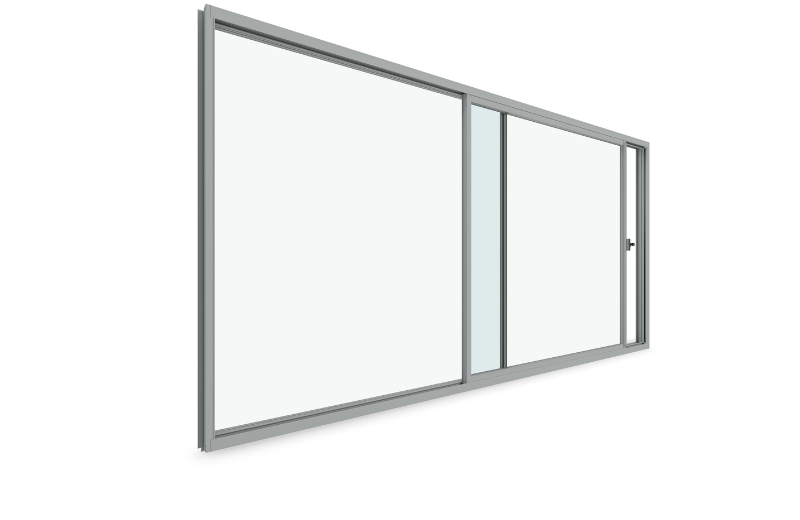

Sliding Window
The ThermaRes sliding windows feature a slim profile frame that ensures energy performance while maximizing natural light and views.
-
Up to 2400mm frame height.
-
U value as low as 2.0.
-
Acoustic ratings up to RW28.
-
Slimline frame creates a minimalist style with larger glass viewing area for maximum natural light and views.
- Low-profile lock which can be easily unlocked and opened with one hand.
- Performance window seals offer improved noise insulation and prevent dust, water, and wind penetration.
ThermaRes Windows and Doors

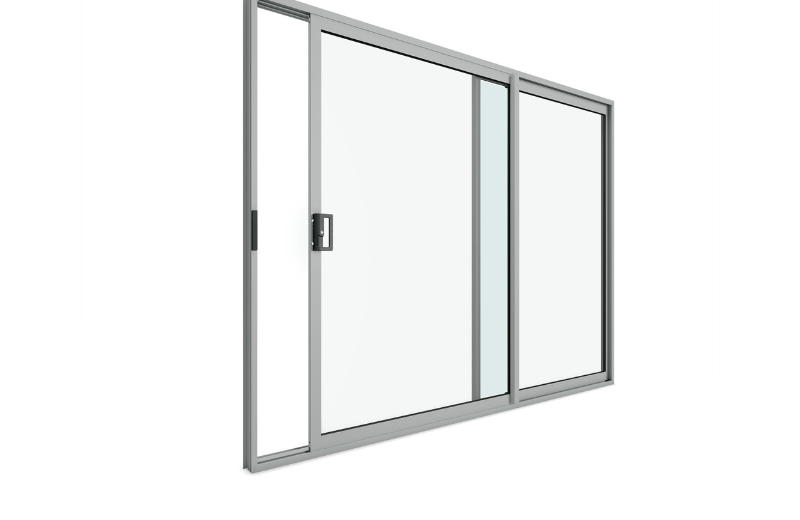

Sliding and Stacking Door
The ThermaRes thermally broken sliding and stacking door provides uncomplicated design flexibility, perfect for connecting your home's interior with the outdoors.
- A low profile 35mm sill height.
-
Up to 2600mm frame height.
-
U value as low as 1.7.
-
Acoustic ratings up to RW35.
-
Overlapping interlocks minimise the sightlines of the interlock and allow for more glass and light.
-
Pull handle with integrated snib and lock.
-
Concealed, shadow-line drainage slots.
ThermaArc windows and doors
Introducing the ThermaArc Energy Efficient Series.
ThermaArc is the perfect combination of energy performance and style - and it is available in sizing that allows for maximum visual impact and design flexibility. With a wide range of configurations to make achieving even the most complex design vision easy.
ThermaArc Windows and Doors
Awning Window
The ThermaArc awning has a robust 88mm frame depth and 50mm sashes that can achieve larger expanses of glass, including 2318mm high x 1122mm wide lites.
-
Up to 6000mm frame height.
-
U value as low as 2.1.
-
Acoustic ratings up to RW40.
- All windows keyed alike. Use one key for multiple windows.
- Chain winder features an integrated lock-and-handle in one. The stainless-steel chain offers durability and reliability.
- All sashes and panels can be removed and installed on-site to minimise associated safety risks with the increased size and weight of the windows.
ThermaArc Windows and Doors

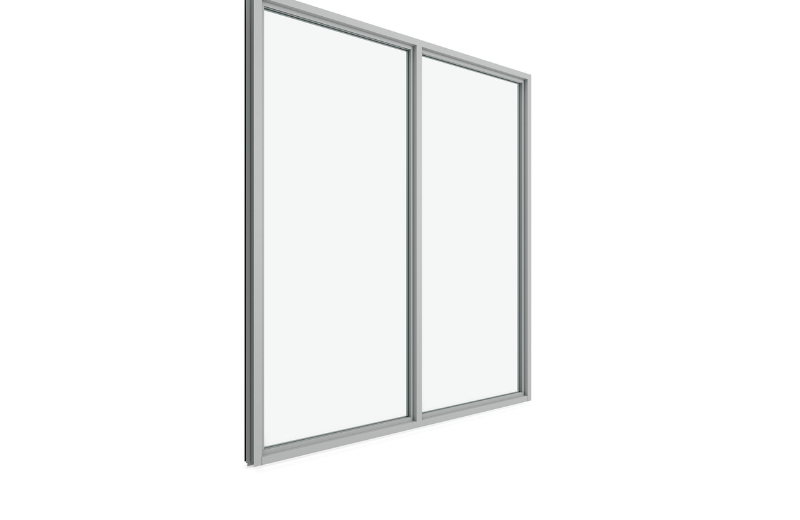

Fixed Window
The ThermaArc fixed window is available in a wide range of configurations including raked shaped windows to make achieving even the most complex design vision easy.
-
Up to 5 sqm of glass in a single lite.
-
Robust modern frame and deeper sash help achieve bigger windows.
-
U value as low as 1.6.
-
Acoustic ratings up to RW40.
- Available in a variety of configurations for greater flexibility and innovative designs.
- Externally glazed to make it easier to glaze larger panels on-site and reduce manual handling.
ThermaArc Windows and Doors

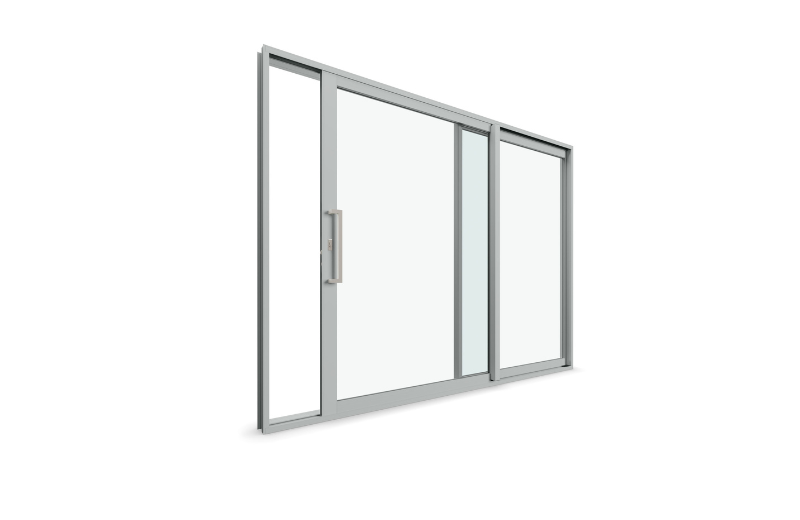

SLIDING AND STACKING DOOR
The ThermaArc sliding and stacking door is the perfect combination of energy performance and style, available in sizing up to 3000mm high, allowing for maximum visual impact. These doors feature premium hardware options for an elevated design aesthetic.
-
Bespoke heavy-duty 32mm rollers provide smooth and easy operation.
-
Up to 3000mm frame height.
-
U value as low as 1.8.
-
Acoustic ratings up to RW35.
-
Overlapping interlocks minimise the sightlines of the interlock and allow for more glass and light.
-
Hardware option of flush pull handle and/or D pull handle.
-
Concealed, shadow-line drainage slots.
ThermaArc Windows and Doors

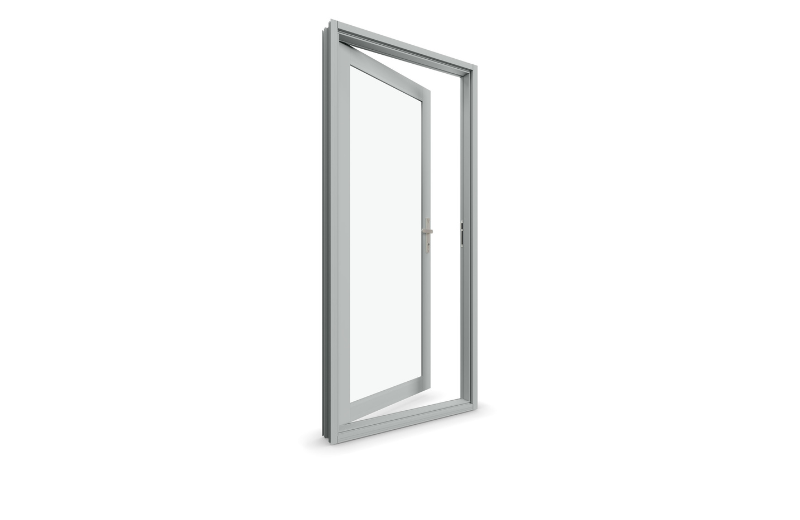

Hinged Door
The ThermaArc thermally broken hinged doors are designed with functionality in mind, available in a variety of opening styles and configurations to suit your specific architectural aesthetic.
-
Bespoke heavy-duty 32mm rollers provide smooth and easy operation.
-
Up to 3000mm frame height.
-
U value as low as 2.0.
-
Acoustic ratings up to RW35.
-
Available in single and double (French door) configurations.
-
Durable stainless-steel lift off hinges allow the door to be adjusted vertically for ease of installation.
Size Charts
Download the ThermaRes and ThermaArc standard sizes, which have been tailored to standard openings based on industry brick sizes and block work. This guide sets out in a clear grid pattern the sizes for windows, reveals, stud opening and bricks. If you require a custom size please see the individual spec sheets by product or speak with your Trend sales consultant.
Download the thermarange size chartsExplore More On Energy Efficiency
